- Model Number: FH-3000W
- is_customized: Yes
- Type: Wind Power Generator
- Brand Name: SMARAAD
- Shaft Material: IRON
- Mounting Base: Without Mounting Base
- Origin: Mainland China
- Certification: CE
- Color: White
- Place of Origin: Jiangsu, China (Mainland)
- Voltage: 96V/120V/220V
- Rated current: 40A
- Rated rpm: 250
Wind & Solar Hybrid Controller
1.Superior military-grade components to ensure the product stability.
2.Perfect protection function, thus the system has higher reliability.
3.Check and set all operation parameters as requirement from LCD display.
4.PWM stepless unload mode, when wind turbine voltage is higher than the preset voltage, the grid-tied controller will dump load the excess voltage.
5.Utility model patent of anti-strong-wind resistance, stepless dump load wind power controller.
6.European CE certification.

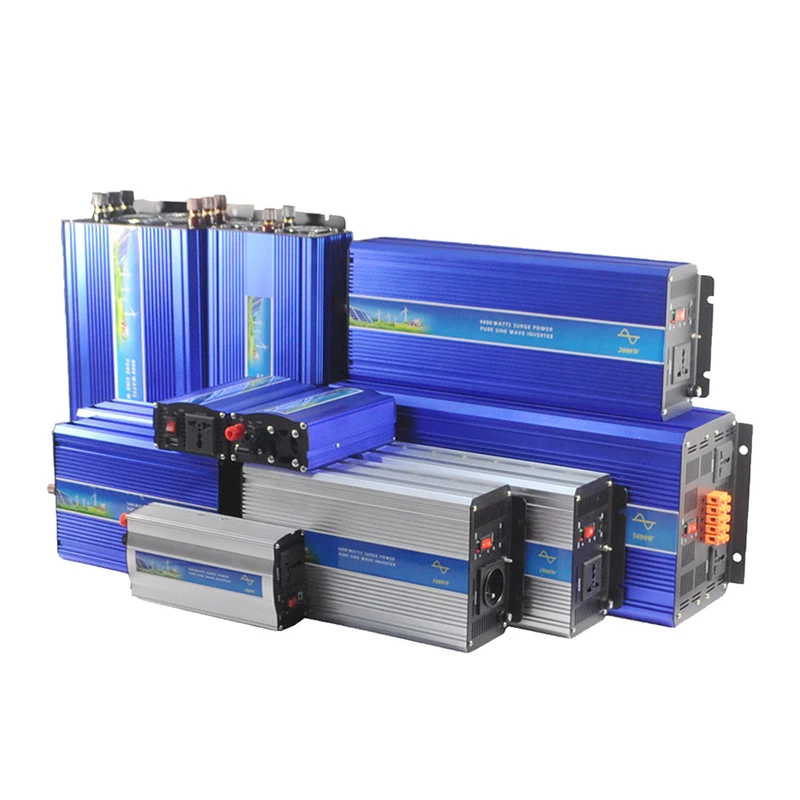

Off Grid Inverter
This inverter is available from 1000W to 7000W. If you need the power specify, you can contact us. Normally, we ship with the default power.
On Grid Inverter
This is a controller and inverter two in one machine, no additional controller required.
FEATURES:
1. Security. Using the vertical blade and triangular double-fulcrum design, the main force points concentrated in the hub, so blade lose, broken and leaf flying-out and other issues have been a better solved.
2. Noise. The use of horizontal rotation and blade application aircraft wing design, making the noise reduced to an unperceivable level in natural environment.
3. Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a small wind pressure, so that it can withstand 45 m/s super typhoon.
4. Rotation radius. Because of its design structure and special operating principle, it has a smaller radius of rotation than other types of wind turbines, it saves space, while improving efficiency
5. Power generation curve characteristics. Start wind speed is lower than other types of wind turbines, the power generation increasing rate is relatively gentle, so between 5 to 8 meters wind speed range, it could produce 10% to 30% power than other types of wind turbines.
6. Effective wind speed range. special control principle makes its effective wind speed range expened to 2.5 ~ 25m / s, in the maximum use of wind resources, obtain a higher power generation, improve wind power investment economics.
7. Brake device. The blade itself has speed protection, and can configure manual mechanical and electronic brake meantime, in the absence of typhoon and super gust area, manual brake is enough.
8. Operation and maintenance. Direct drive type permanent magnet generator, without gear box and steering mechanism, regularly(usually every six months) check the connection of the running parts.
9. Appliacation. The turbine could be installed near facilities, such as residences, parks, schools, building rooftops, roads and walking street, etc

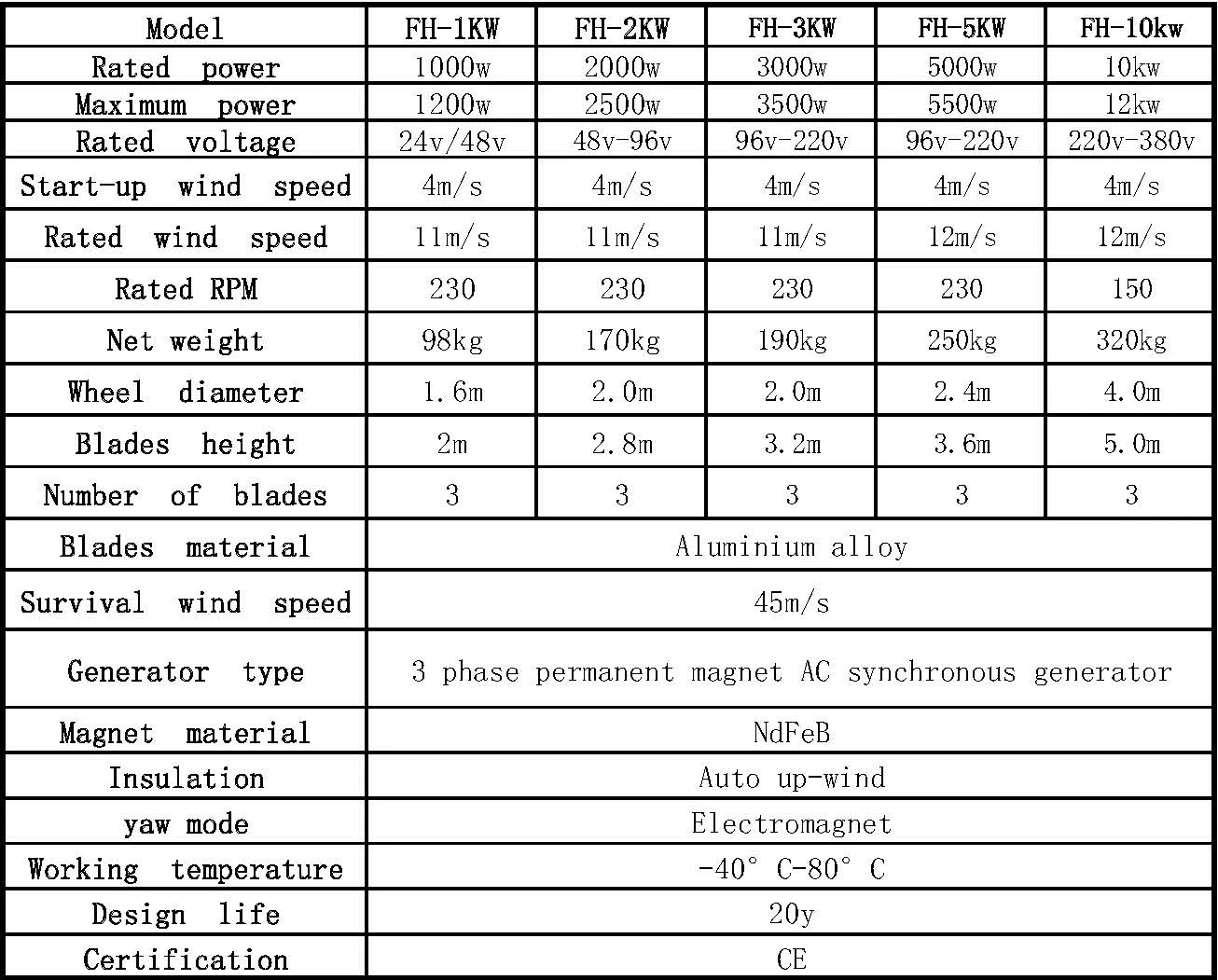

SPECIFICATIONS:
PACKING LIST:
1. vertical wind turbine 1 set.
2.Controller and inverter(optional)
REMINDER:
1.The price you paid for the item excludes any customs tax.We will not shoulder any duties in destination country.
2.Please check with your country customs office to determine what these additional costs will be prior to bidding/buying.
3.The price is only for wind turbine, if you need controller and inverter, pls contact us to get the best price for whole system.
4.Since the dimension and weight is very big, we could only ship by sea, so the price is CIF price to your port only. Also better provide your company address to make costom clearance easier.
